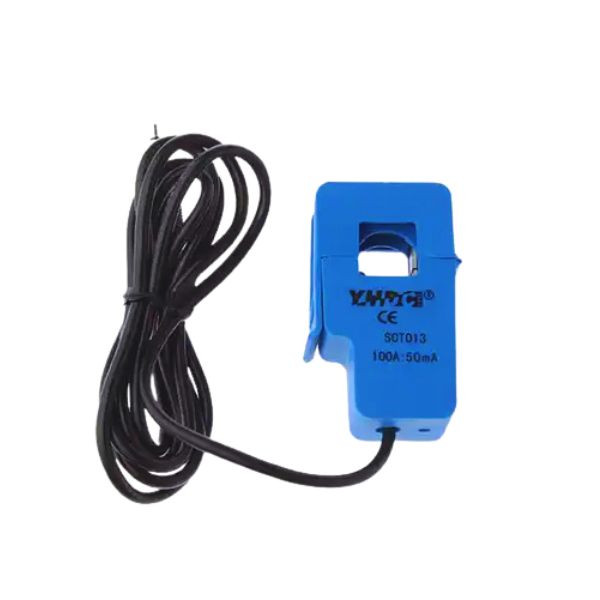

Non-invasive AC Current Sensor Split Core Current Transformer SCT-013-000 100A

Summary:

The SCT-013-000 is a non-invasive, split-core current transformer (CT) designed for measuring alternating current (AC) in electrical systems. It is widely used in energy monitoring, IoT applications, and power management systems. The split-core design allows for easy installation without the need to disconnect the wire being measured, making it ideal for retrofitting into existing systems. The sensor is capable of measuring currents up to 100A and outputs a proportional AC voltage signal, which can be interfaced with microcontrollers, data loggers, or other monitoring devices.

Key Features:

Non-invasive Design: Split-core construction enables easy installation around existing wires without breaking the circuit.
Current Range: Measures AC currents up to 100A.
Output Signal: Provides an AC voltage output proportional to the measured current.
High Accuracy: Designed for reliable and precise current measurement.
Compact and Lightweight: Easy to integrate into various applications.
Safety: Isolated measurement ensures user safety and protects connected equipment.

Specifications:

Model: SCT-013-000
Type: Split-core current transformer (CT)
Current Rating: 0 to 100A AC
Output: AC voltage signal (proportional to current)
Output Signal Range: 0 to 1V AC (for 100A input)
Frequency Range: 50Hz to 60Hz (suitable for standard AC power systems)
Core Material: High-quality ferrite core for accurate measurements
Opening Size: Typically 13mm diameter (fits standard electrical wires)
Isolation Voltage: High isolation for safe operation
Operating Temperature: -25°C to +70°C
Accuracy: Typically ±1% (depending on calibration and external circuitry)
Burden Resistor: Not included (external resistor required for current-to-voltage conversion)
Compliance: RoHS compliant
