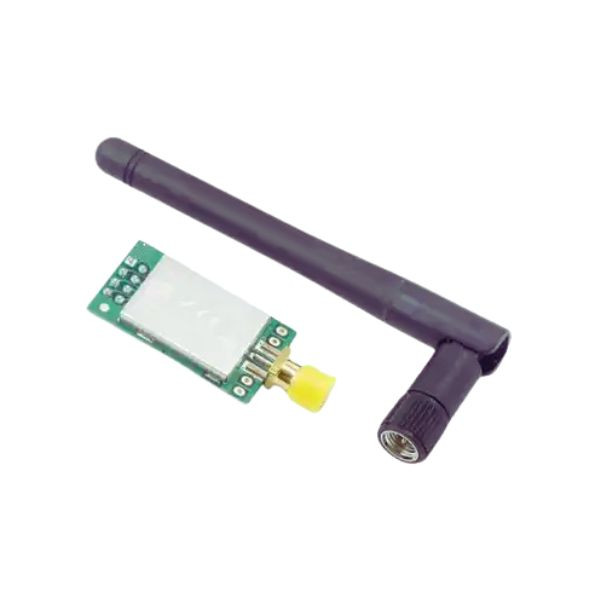

Long Range E01-ML01DP5 RF Wireless Transceiver Module with Antenna 2.4GHz

The E01-ML01DP5 is a 2.4GHz wireless transceiver module developed by Ebyte, designed for long-range communication applications. It integrates the Nordic nRF24L01P RF chip with a power amplifier (PA) and low-noise amplifier (LNA) to enhance transmission power and receiving sensitivity.

Key Specifications:
    Frequency Range: 2400 to 2525 MHz
    Transmit Power: 20 dBm (100 mW)
    Receiving Sensitivity: -96 dBm at 250 kbps
    Data Rate: Configurable from 250 kbps to 2 Mbps
    Communication Interface: SPI
    Operating Voltage: 2.0 to 3.6 V DC
    Dimensions: 18 x 33.4 mm (excluding SMA connector)
    Antenna Interface: SMA-K connector
    Operating Temperature: -40°C to +85°C

In open environments, with optimal conditions such as a 5 dBi antenna and a data rate of 250 kbps, the module can achieve communication distances up to 2.5 kilometers.
The module's pin configuration includes connections for power (VCC and GND), SPI interface (CE, CSN, SCK, MOSI, MISO), and an interrupt request pin (IRQ).

This module is suitable for applications requiring robust and long-range wireless communication, such as industrial control, smart home systems, and wireless sensor networks.
